![Steam Boiler for Alcohol Recovery in Kentucky, USA](/d/file/p/2023/03-16/3bd31b77200d229d86516653931df5eb.jpg)

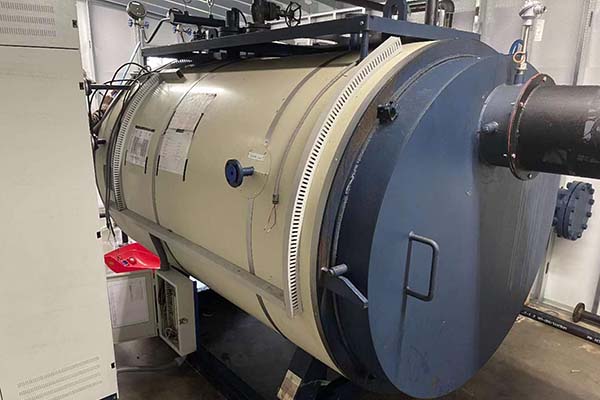

Steam Boiler for Alcohol Recovery in Kentucky, USA
- Project: Steam Boiler for Alcohol Recovery in Kentucky, USA
- Industry: Alcohol
- Boiler Type: WNS Series Horizontal Type Fire Tube Steam Water Boiler
- Boiler Model and Quantity: 1 set of WNS1-1.0-YQ
On August 31st of 2020, our client in Kentucky, USA paid us deposit to purchase one complete steam boiler WNS1-1.0-YQ. He uses natural gas as fuel to produce steam 105-120℃ at 1,000kgs per hour with working pressure 2.5-3bars.
For the boiler is for USA market, it has to be designed and fabricated as per ASME standard. The customer’s company are in Alcohol recovery industry. The steam from our boiler enters his single effect concentrator to steam the alcohol, and make the water in it to be evaporated continuously. In this way, the alcohol concentration is increased.
Characteristics of WNS series horizontal type fire tube steam boiler:
- Central reverse burning structure;
- Laddering heat recovery can greatly increase boiler efficiency;
- The double-layer sealing structure of front smoke box door and panel adopts aluminium silicate board as insulation material, with high thermal insulation and sealing effect;
- Detachable spring explosion-proof door ensures safety, also can be used as inspection hole;
- Waste heat recovery in flue gas lowers exhaust temperature to 95℃, and improves efficiency to 98 .5 %;
- Discharge of NOX , COX , SOX and other harmful substances has been greatly reduced;
- The range of steam pressure can be set by touch screen , achieving automatic and accurate control;
- Big water volume with strong adaptability to heat load.
- Spoilers inside tube, strengthen heat transfer, increase efficiency;
- Smoke box is made of special insulation material with long service life;
- Boiler body adopts multiple centrifugal glass wool insulation with light weight and less heat loss.
![Steam Boiler for Alcohol Recovery in Kentucky, USA](/d/file/p/2023/03-16/3bd31b77200d229d86516653931df5eb.jpg)
