Steam Boiler for Edible Oil Making in Uzbekistan

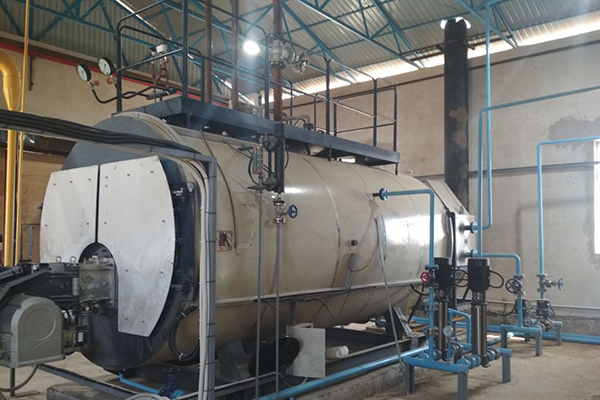

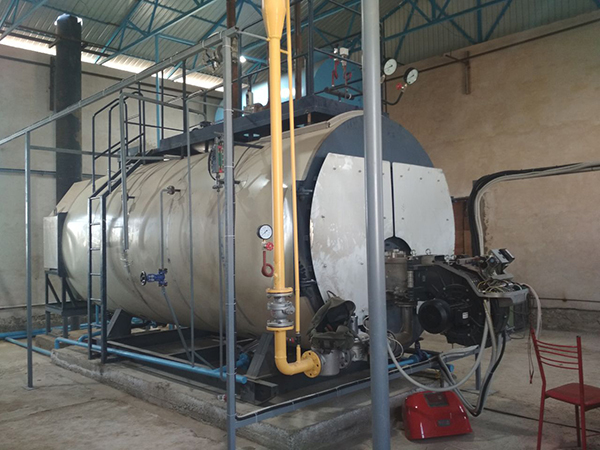

• Project: Steam Boiler for Edible Oil Making in Uzbekistan
• Industry: Food
• Boiler Type: WNS Series Horizontal Type Fire Tube Steam Boiler
• Boiler Model and Quantity: 2 sets of WNS4-1.25-YQ




Two clients from Uzbekistan who visited our factory in October 2019, placed the  order of two sets of WNS4-1.25-YQ gas fired steam boiler to us, and 2 sets edible oil machine from our partner factory. The two steam boilers are used for oil making.

The two clients want to expand their factory to ensure their people in Uzbekistan have enough edible oil.

Characteristics of WNS series horizontal type fire tube steam boiler:

• Wet back three-pass fire tube boiler with reversal burning chamber;
• Laddering heat recovery can greatly increase boiler efficiency;
• The double-layer sealing structure of front smoke box door and panel adopts  aluminium silicate board as insulation material, with high thermal insulation and sealing effect;
• Detachable spring explosion-proof door ensures safety, also can be used as inspection hole;
• Continuous variable frequency water supply, ensures pump and burner run coordinately and stably.
• Waste heat recovery in flue gas lowers exhaust temperature to 95℃, and improves efficiency to 98 .5 %;
• Discharge of NO_X , CO_X , SO_X and other harmful substances has been greatly reduced;
• Compared with traditional four water level alarms , there is a fifth water level  detection, further strengthening safety automatically;
• The range of steam pressure can be set by touch screen , achieving automatic and accurate control;
• Big water volume with strong adaptability to heat load.
