Steam Boiler for EPS Industry in Illorin, Nigeria

Project: Steam Boiler for EPS Industry in Illorin, Nigeria
Industry: EPS

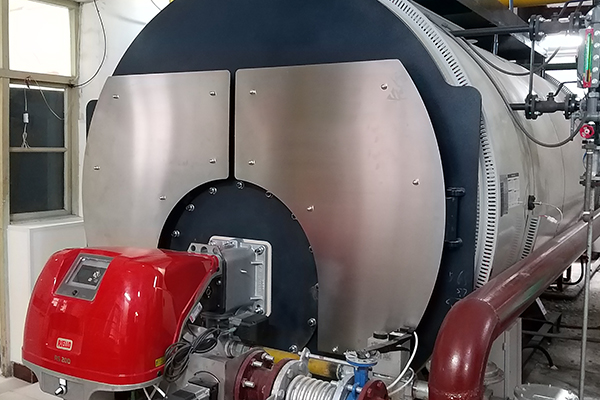

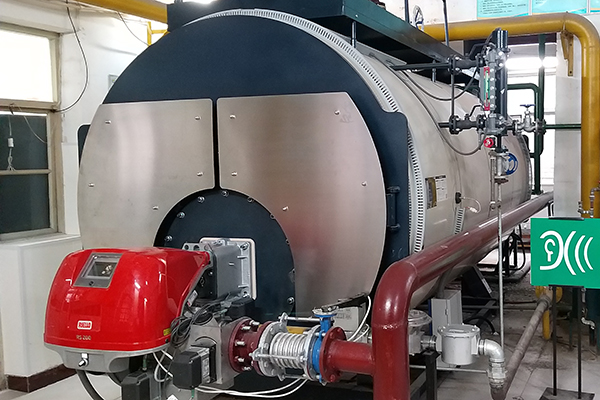

Boiler Type: WNS Series Horizontal Type Fire Tube Steam Boiler
Boiler Model and Quantity: 1 set of WNS2-1.0-YQ

On 11^th March of 2021, our client in Nigeria paid us deposit for a complete steam boiler system WNS2-1.0-YQ powered by diesel, which is used in EPS industry. Its steam capacity is 2,000kgs/hr, design pressure is 10bars.

The customer has EPS Shape Moulding Machine and EPS Batch Pre-Expander Machine. The EPS machine, also known as Foam Plastics machine, is widely used in agriculture like vegetable foam boxes, fruit foam boxes, seafood boxes, and nursery tray; used in industries like electronic packaging, foam silencers; foam packaging boxes in packaging and transportation industry; EPS module production in construction industry, etc.

Characteristics of WNS series horizontal type fire tube steam boiler:

Wet back three-pass fire tube boiler with reversal burning chamber;
Laddering heat recovery can greatly increase boiler efficiency;
The double-layer sealing structure of front smoke box door and panel adopts aluminium silicate board as insulation material, with high thermal insulation and sealing effect;
Detachable spring explosion-proof door ensures safety, also can be used as inspection hole;
Continuous variable frequency water supply, ensures pump and burner run coordinately and stably.
Waste heat recovery in flue gas lowers exhaust temperature to 95℃, and improves efficiency to 98 .5 %;
Discharge of NO_X , CO_X , SO_X and other harmful substances has been greatly reduced;
Compared with traditional four water level alarms , there is a fifth water level detection, further strengthening safety automatically;
The range of steam pressure can be set by touch screen , achieving automatic and accurate control;
Big water volume with strong adaptability to heat load.
